24FLC-LC Patch cord PVC、LSZH、TPU
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | TK-PC-48F-SC-OS2-50M |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 1000pcs/দিন |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | 24FLC-LC প্যাচ কর্ড | শেষ মুখের ধরন: | পিসি, ইউপিসি এবং এপিসি |
|---|---|---|---|
| ফাইবার টাইপ: | SM (G652, G655, G657)；MM（OM1-OM5） | তারের ব্যাস: | 3.0 মিমি |
| সন্নিবেশ ক্ষতি: | ≤ 0.3 dB | ক্ষতি: | UPC SM≥50dB 、APC SM≥ 60 dB 、 PC MM ≥ 35 dB |
| পুনরাবৃত্তিযোগ্যতা: | ≤ 0.1 | প্রসার্য শক্তি: | >70N |
| অপারেটিং তাপমাত্রা: | -20 ℃ ~ 70 ℃ ℃ | স্টোরেজ তাপমাত্রা: | -40 ℃ ~ 80 ℃ ℃ |
| বাইরের শিট উপাদান: | PVC, LSZH, TPU | নমন ব্যাসার্ধ (স্ট্যাটিক/ডাইনামিক): | 10d/20d |
| দৈর্ঘ্য: | কাস্টমাইজড | ফাইবার ব্র্যান্ড: | কর্নিং, YOFC, OFS, ড্রাকা |
| বিশেষভাবে তুলে ধরা: | 24FLC-LC fiber optic patch cord,PVC fiber optic patch cable,LSZH fiber optic patch cord |
||
পণ্যের বর্ণনা

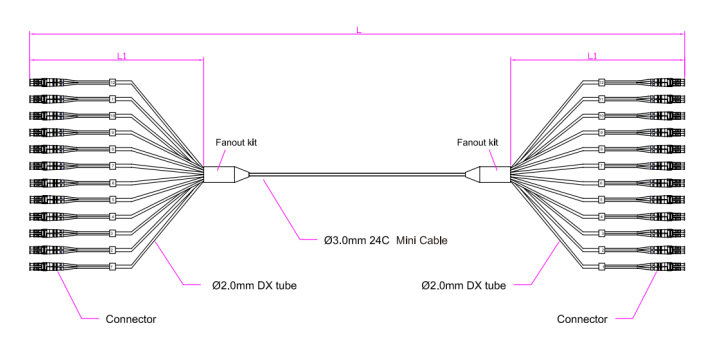

24FLC-LC Patch cord PVC、LSZH、TPU
24FLC-LC Patch cord PVC,LSZH,TPU
Product Applications
- CATV
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
- Meet various requirements of market and clients
Product Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Product Specifications
| End face type | PC,UPC and APC |
|---|---|
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
