LC Smart Optical Fiber Patchcord LSZH/PVC SM/MM UPC and APC
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | TK-PC-48F-SC-OS2-50M |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 1000pcs/দিন |
|
বিস্তারিত তথ্য |
|||
| পণ্য NEC Pigtailame: | এলসি স্মার্ট অপটিক্যাল ফাইবার প্যাচকর্ড | শেষ মুখের ধরন: | ইউপিসি এবং এপিসি |
|---|---|---|---|
| ফাইবার টাইপ: | SM (G652、G655、G657); MM (OM1-OM5) | তারের ব্যাস: | 0.9, 2.0, 3.0 বা কাস্টমাইজড (সিমপ্লেক্স/ডুপ্লেক্স) |
| ইন্টারশন লস: | ≤0.3dB | ক্ষতি: | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| পুনরাবৃত্তিযোগ্যতা: | ≤ 0.1 | স্থায়িত্ব: | ≤ 0.2 ডিবি |
| প্রসার্য শক্তি: | 0.9mm >5N, 2.0mm/3.0mm >70N | অপারেশন তাপমাত্রা: | -20 ℃ ~ 70 ℃ ℃ |
| স্টোরেজ তাপমাত্রা: | -40 ℃ ~ 80 ℃ ℃ | বাইরের শিট উপাদান: | PVC, LSZH, TPU |
| দৈর্ঘ্য: | 10M, 20M বা কাস্টমাইজড | ফাইবার ব্র্যান্ড: | কর্নিং, YOFC, OFS, ড্রাকা |
| বিশেষভাবে তুলে ধরা: | LSZH fiber optic patchcord,SM MM fiber patch cable,UPC APC optical patchcord |
||
পণ্যের বর্ণনা
LC Smart Optical Fiber Patchcord LSZH/PVC SM/MM UPC and APC
LC smart optical fiber patch cord is developed with duplex optical fiber and additional two copper pins for transmission and management signal.
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Length 2m, 3m, 5m are optional
- Standard: Telcordia GR-326-CORE
- Various flame retardant outer sheath option
- International standard color/ color conforms to international standard
- The connectors of LC smart optical fiber patchcord are built in LED indicator light, which are used for searching and operation.
Product Parameter
- Cable Appearance: fiber+ copper cable+fiber, side by side structure.
- Touch pin: Diameter 1.5mm, made of 50 micro - inch gold plated phosphor bronze with spring
- Copper Conductor: 26AWG
- Conductors: 2 fibers+2 core wire
- Jacket Material: PVC/PE
- Insulation Materials: CM /CMR /CMP/LSOH
Fiber Optic Pigtail Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 5.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |

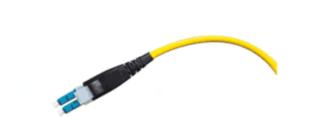

Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
