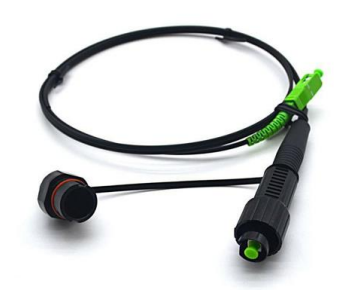

SC/APC-Optictap SC/APC FTTH Drop Cable Patchcord/Pigtail , SM G657A1 ,5.0*2.0mm, LSZH Black Jacket
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | TK-PC-48F-SC-OS2-50M |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 1000pcs/দিন |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | ড্রপ ক্যাবল প্যাচকর্ড/পিগটেল | টাইপ: | SC/APC(1310) |
|---|---|---|---|
| শেষ মুখ: | IEC 61300-3-35 | তারের ব্যাস: | 3.0 মিমি |
| সন্নিবেশ ক্ষতি: | ≤0.3 dB + 0.36 dB/ km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/ কিমি *L(কিমি) @ 1550nm | ক্ষতি: | ≥60dB |
| স্থায়িত্ব (1000 মিলন): | 0.2dB Max.increase | ইনস্টলেশন তাপমাত্রা: | -10 ℃～+60 ℃ ℃ |
| অপারেটিং তাপমাত্রা: | -25 ℃ ~ 70 ℃ ℃ | স্টোরেজ তাপমাত্রা: | -40 ℃ ~ 75 ℃ ℃ |
| বাইরের শিট উপাদান: | LSZH কালো | দৈর্ঘ্য: | কাস্টমাইজড |
| ফাইবার ব্র্যান্ড: | কর্নিং, YOFC, OFS, ড্রাকা | ||
| বিশেষভাবে তুলে ধরা: | SC/APC FTTH drop cable,SM G657A1 fiber patchcord,LSZH black fiber optic pigtail |
||
পণ্যের বর্ণনা
SC/APC-Optictap SC/APC FTTH Drop Cable Patchcord/Pigtail, SM G657A1, 5.0*2.0mm, LSZH Black Jacket
A Fast Connect drop cable adopts an anti-vibration design. It allows plug and play (no splicing), helps customers deploy it fast, and reduces time. In addition, it ensures high network reliability and durability.
Product Attributes
- Mode field diameter: 8.6um±0.4um at 1310nm
- Cladding diameter: 125.0um±0.7um
- Coating diameter: 245um±10um
- Coating-cladding concentricity error: ≤12.5um
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: Steel wire
- Diameter: 0.45mm*2
- Self support Messenger wire: Material: steel wire, Diameter: 1.2mm
Outer Sheath
- Material: LSZH Black
- Cable size: 5.0*2.0mm
Connector Features & Benefits
- Fast deployment, plug and play
- IP67 protection
- Anti-vibration design
- Ferrule protection and orientation design
- Easy to install and uninstall
Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 90N |
Optical Fiber Performance
| Tensile strength | Long term(N) | 300 |
|---|---|---|
| Short term(N) | 600 | |
| Crush load | Long term(N) | 1100 |
| Short term(N) | 2200 | |
| wavelength(nm) | 1310/1550 | |
| Attenuation(dB) | 0.4/0.3 | |
| Cladding diameter(um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter(um) | 242±7 |
Why Choose TAKFLY?
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
