1 to 2 Port Gigabit Waterproof PoE Extender with 250m Extension and IEEE 802.3af/at Standard
পণ্যের বিবরণ:
| পরিচিতিমুলক নাম: | Takfly/DF |
| সাক্ষ্যদান: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| মডেল নম্বার: | টাকা-এমপিও-পিসি |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| প্যাকেজিং বিবরণ: | আন্তর্জাতিক রপ্তানি প্যাকিং |
| ডেলিভারি সময়: | 1-3 কার্যদিবস (পরিমাণ উপর নির্ভর করে) |
| পরিশোধের শর্ত: | টিটি 100% |
| যোগানের ক্ষমতা: | 3000 পিসি/দিন |
|
বিস্তারিত তথ্য |
|||
| খাপ উপাদান: | পিভিসি | অপারেশন তরঙ্গদৈর্ঘ্য: | 1310/1550nm |
|---|---|---|---|
| সন্নিবেশ ক্ষতি: | 0.3 ডিবি | বিনিময়যোগ্যতা: | ≤0.2dB |
| পোলারিটি: | A, B, বা C টাইপ করুন | ফাইবারের পরিমাণ: | 24 |
| মোড: | এস এম এম | Ferrulematerial: | সিরামিক |
পণ্যের বর্ণনা

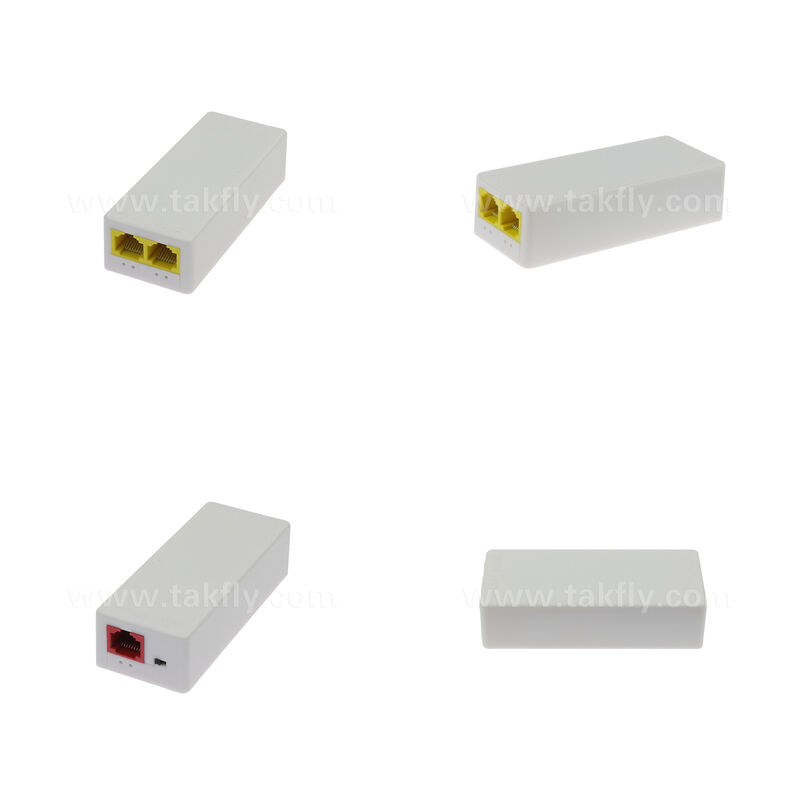

1 to 2 Port Gigabit Waterproof PoE Extender with 250m Extension
Product Introduction
The PoE extender splits the signal into two data channels, with each port supporting the IEEE 802.3af/at standard. The built-in switch supports extended transmission distances of up to 250 meters.
Designed to work with PSE power sourcing equipment, this PoE extender provides power to network devices such as wireless access points, routers, IP cameras, and IP phones in environments where power outlets are not readily available or are located far away.
In many surveillance applications, the ideal camera position may not have easy access to power. The PoE extender makes it easier to integrate terminal devices into a PoE network, allowing surveillance equipment to be installed at the optimal location without being limited by the placement of power outlets.
The housing is made of ABS engineering plastic, which offers high heat resistance and good thermal insulation.
Technical Features

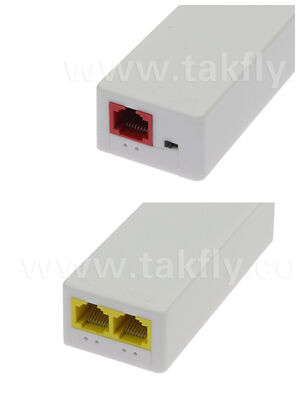

- The device provides 1 Fast Ethernet RJ45 input port and 2 Fast Ethernet RJ45 output ports
- Supports PoE standard power supply with intelligent power detection; supports 1236/4576 power supply modes and 4-core/8-core network cables
- Compliant with IEEE 802.3af/at standards; compatible with PoE switches and IP cameras from brands such as HK, DH, TP, and others
- Extends transmission distance up to 250 meters at 10Mbps data rate; stable signal transmission with auto-negotiation for 10/100Mbps network environments
- Auto MDI/MDIX support for easy installation and system debugging
- Built with high-quality components and a robust design, ensuring reliable transmission across a wide range of applications
- Housing made of ABS engineering plastic, offering high temperature resistance and good thermal insulation
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | PoE Extender |
| MTBF | 100,000 hours |
| Input Voltage | DC 44-57V |
| Output Voltage | DC 44-57V |
| Total Power Consumption | < 25W (full load) |
| Operating / Storage Temperature | -20℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| LED Indicator | Power LED |
| Switch | When enabled, extends transmission distance up to 250 meters at 10Mbps |
| Ingress Protection | IP30 |
| Model Number | GW-POE012 |
| Interfaces | 1 RJ45 input port + 2 RJ45 output ports |
| Weight | 55g / unit |
| Dimensions | 94 × 38 × 24 mm |
| Carton Quantity | 270 units / carton |
