16 Channel Video Digital Optical Converter: AHD/CVI/TVI to BNC to Fiber Optic Video Transmitter/Receiver
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | 16 চ্যানেল ভিডিও ডিজিটাল অপটিক্যাল কনভার্টার |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 1000 পিসি/দিন |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | 16 চ্যানেল ভিডিও ডিজিটাল অপটিক্যাল কনভার্টার: AHD/CVI/TVI থেকে BNC থেকে ফাইবার অপটিক ভিডিও ট্রান্সমি | ভিডিও চ্যানেল: | 16 |
|---|---|---|---|
| ভিডিও ব্যান্ডউইথ: | 0 ~ 6.5 MHz | নমুনা হার: | 8 বিট/10 বিট |
| শব্দ অনুপাত থেকে সংকেত: | ≥ 65dB | সংকেত সিস্টেম: | PAL/NTSC/SECAM |
| ডেটা ইন্টারফেস: | RS485 | ডেটা রেট: | DC-256Kbps |
| ফাইবার ব্র্যান্ড: | কর্নিং, YOFC, OFS, ড্রাকা | ট্রান্সমিশন তরঙ্গদৈর্ঘ্য: | 1310nm/1550nm |
| অপটিক্যাল ইন্টারফেস: | এফসি/পিসি | অপটিক্যাল ডাইনামিক রেঞ্জ: | 17dB |
| অপারেটিং তাপমাত্রা:: | -10 ℃ ~ +55 ℃ ℃ | ||
| বিশেষভাবে তুলে ধরা: | 16 channel AHD to fiber optic converter,CVI TVI BNC fiber optic transmitter,digital optical video receiver with warranty |
||
পণ্যের বর্ণনা
16 Channel Video Digital Optical Converter: AHD/CVI/TVI to BNC to Fiber Optic Video Transmitter/Receiver
This advanced digital optical converter series employs cutting-edge all-digital communication technology, capable of simultaneously transmitting 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber optic cable. Utilizing non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality with exceptional clarity.
Featuring plug-and-play design for simplified installation without on-site commissioning, these converters operate reliably across diverse environments with prolonged stability. LED status indicators monitor power and operational parameters, while comprehensive lightning-proof design ensures equipment stability with no electromagnetic, radio frequency, or ground current interference.
The product combines high-quality digital transmission with long-distance capabilities and competitive pricing, making it an ideal solution for demanding fiber-optic video transmission applications.
Applications
- Security & Safe City building security monitoring
- Highway and railway transportation remote monitoring
- Urban public transport monitoring systems
- Security applications
- Operator unattended engine room monitoring
- Bank security monitoring
- Power system remote monitoring
- Industrial and mining production process monitoring
- Water flood control and reservoir site monitoring
- Airport security monitoring
- Radio and television image transmission
- School campus and examination room monitoring
- High-rise buildings and intelligent community security
- Customs barrier and warehouse video surveillance
- Petrochemical facility monitoring
- Prison video surveillance systems
- Government agency monitoring and alarm systems
- Security areas, command and control positions visualization
- Forest fire command systems
Key Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, no adjustment required during use
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication
- Three-level lightning protection
- Industrial design with high reliability for harsh environments
- Automatic power adjustment, temperature compensation, and overload protection with auto-restoration
- Full Surface Mount Technology
- Use of standard 19" 1.2U Chassis for easy installation
Performance Specifications
Video Indicators
| Parameter | Specification |
|---|---|
| Video Channels | 16 |
| Video Bandwidth | 0 ~ 6.5 MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Indicators
| Parameter | Specification |
|---|---|
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | DC-256Kbps |
| Bit Error Rate | <10E-12 |
Optical Indicators
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm (length) x170mm (W) x55mm (H) |
| Weight | 6.0kg |

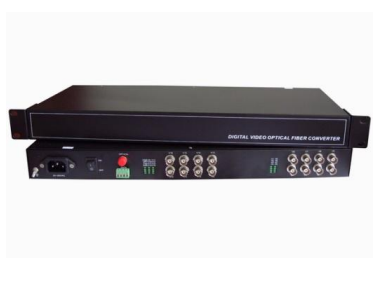

Product Images
Why Choose TAKFLY?
- More than 26+ years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Brand acceptance
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process completion
- Full check of production half-done items
- Full check of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
