FTTH Field-Assembled TK-FC-SCU/A-H001 Mechanical Fiber Optic Connector-Fiber embedded Tech - TK-FC-SCU/A-H001
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | TK-FC-SCU/A-H001 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 1000 পিসি/দিন |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | FTTH ফিল্ড-এসেম্বল TK-FC-SCU/A-H001 মেকানিক্যাল ফাইবার অপটিক কানেক্টর-ফাইবার এমবেডেড টেক - TK-FC-SCU | তারের সুযোগ: | Ф3.0 মিমি এবং Ф2.0 মিমি Ф0.9 অদৃশ্য কেবল |
|---|---|---|---|
| আকার: | 46*9*8 মিমি | মোড: | এস.এম |
| ক্ষতি sert োকান: | ≤0.3db (1310nm এবং 1550nm), সর্বোচ্চ ≤0.5db | রিটার্ন ক্ষতি:: | ইউপিসির জন্য 5050 ডিবি, এপিসির জন্য 55 ডিবি |
| প্রসার্য দৃঢ়তা:: | > 30N/2 মিনিট | অপারেটিং তাপমাত্রা: | -40°C～+85°C |
| ফাইবার ব্র্যান্ড: | কর্নিং, YOFC, OFS, ড্রাকা | ||
| বিশেষভাবে তুলে ধরা: | FTTH mechanical fiber optic connector,field-assembled fiber optic connector,fiber embedded tech connector |
||
পণ্যের বর্ণনা
FTTH Field-Assembled TK-FC-SCU/A-H001 Mechanical Fiber Optic Connector
TAKFLY Mechanical Field-Mountable Fiber Optic Connector (FMC) simplifies fiber connections without requiring fusion splicing equipment. This quick-assembly connector needs only standard fiber preparation tools: cable stripper and fiber cleaver.
Product Overview
The connector utilizes Fiber Pre-Embedded Technology with superior ceramic ferrule and aluminum alloy V-groove. Transparent side cover design allows visual inspection. Compatible with drop cable and indoor cable. Dimensions: 46×9×8mm
Applications
- LAN environment desk connections
- Optical access network infrastructure
- Fiber to the Subscriber (FTTX) applications
- Patch panels and distribution frames
- Direct equipment termination
- FTTx network deployments
- Optical equipment room wiring reconstruction
- Data Room Transformation
Key Features
- Factory-installed fiber stub for immediate use
- No epoxy or polishing required
- Quick and easy field fiber termination
- Eliminates cable excess length and pigtail splice storage
- Cost-effective installation solution
- Low insertion loss and back reflection loss
- Extremely easy operation process
- Short operation time - approximately 15 seconds
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Scope | Ф3.0 mm & Ф2.0 mm Ф0.9 invisible cable |
| Size | 46*9*8mm |
| Fiber Diameter | 125μm (652 & 657) |
| Coating Diameter | 900μm |
| Mode | SM |
| Operation Time | About 4min (exclude fiber presetting) |
| Insertion Loss | ≤0.3dB(1310nm & 1550nm), Max ≤0.5dB |
| Return Loss | ≥50dB for UPC, ≥55dB for APC |
| Success Rate | > 98% |
| Reusable Times | > 10 times |
| Tighten Strength of Naked Fiber | > 3 N |
| Tensile Strength | > 30 N/2 min |
| Temperature Range | -40°C to +85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability (500 times) | IL ≤ 0.3dB |
| Drop Test (4m concrete floor) | IL ≤ 0.3dB |
Relevant Solutions
Easy operating connector directly compatible with ONU devices, featuring fasten strength exceeding 5 kg. Widely used in FTTH network revolution projects, reducing socket and adapter usage while saving project costs.
With 86 standard socket and adapter, enables connection between drop cable and patch cord. The 86 standard socket provides complete protection through unique design.
Applicable for connections with field mountable indoor cable, pigtail, patch cord, and data room patch cord transformation. Directly compatible with specific ONU devices.

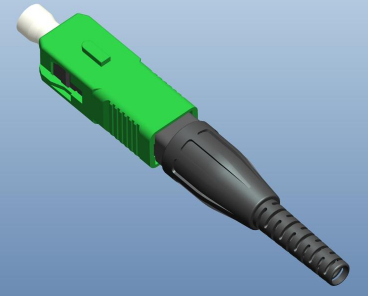

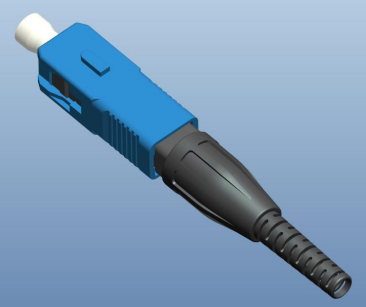

Product Image
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
