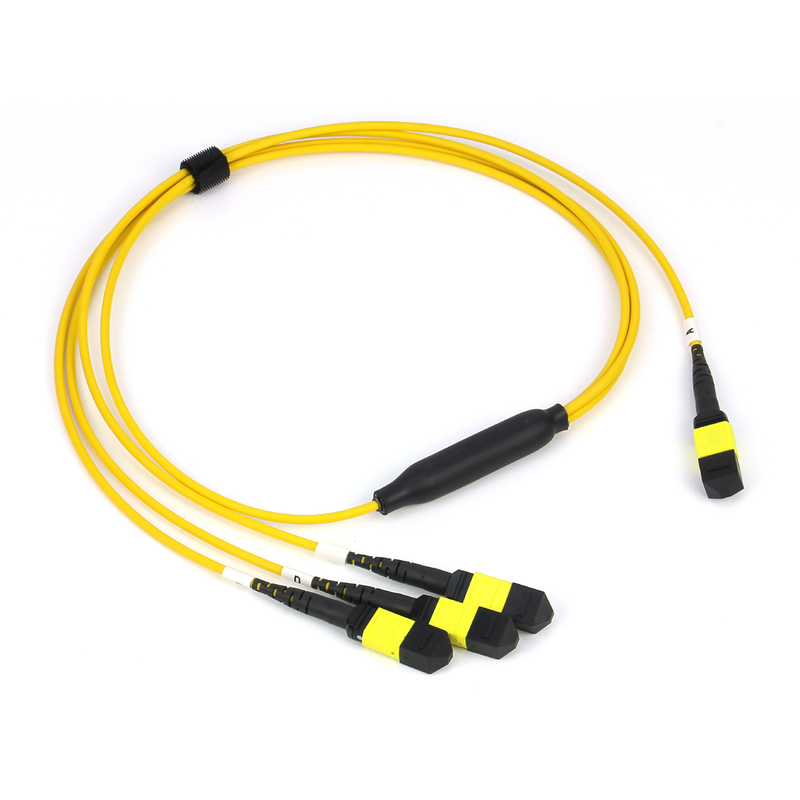

Flexible MPO MTP Fiber Optic Patchcord for Easy Network Configurations 3.0mm-4.5mm Jacket Double Jacket Female without PIN
পণ্যের বিবরণ:
| পরিচিতিমুলক নাম: | Takfly/DF |
| সাক্ষ্যদান: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model Number: | TK-MPO-PC |
| নথি: | Takfly MPO Fanout Patch Cor...rd.pdf |
প্রদান:
| Minimum Order Quantity: | 1 |
|---|---|
| মূল্য: | 28 |
| Packaging Details: | International Export Packing |
| Delivery Time: | 1-3 Working Days( Depends On Quantity) |
| Payment Terms: | TT 100% |
| Supply Ability: | 3000 Pcs/ Day |
|
বিস্তারিত তথ্য |
|||
| স্থায়িত্ব: | ≤ 0.2dB | পোলিশ টাইপ: | পিসি/এপিসি |
|---|---|---|---|
| টেস্ট তরঙ্গদৈর্ঘ্য （এনএম）: | এসএম: 1310/1550 মিমি: 850/1300 | পুনরাবৃত্তিযোগ্য: | ≤ 0.1dB |
| ব্রেকআউট দৈর্ঘ্য: | 0.5M/1M/1.5M/কাস্টমাইজড | সন্নিবেশ ক্ষতি স্টারড্যান্ড: | স্ট্যান্ডার্ড ： ≤0.35/0.7 (সাধারণ/সর্বোচ্চ） কম ক্ষতি ： ≤0.2/0.35 (সাধারণ/সর্বোচ্চ） |
| ফাইবার মোড: | একক / মাল্টি-মোড | অন্য Fanout উপায়: | উপলব্ধ |
| বিশেষভাবে তুলে ধরা: | Female Fiber Optic Patchcord,MPO MTP Fiber Optic Patchcord,Flexible Fiber Optic Patchcord |
||
পণ্যের বর্ণনা
Product Description:
The MPO MTP Fiber Optic Cable is a high-quality cable designed for data center and enterprise network applications. It features Multi-Fiber Termination Push-On Connectors, making it easy to install and manage in complex networking environments.
This fiber optic cable is available in two Cable Material options: LSZH and PVC. LSZH (Low Smoke Zero Halogen) is a flame-retardant material that emits limited smoke and no toxic halogens when exposed to high heat or fire. PVC (Polyvinyl Chloride) is a durable and cost-effective material commonly used in indoor cabling installations.
Users can choose between Singlemode and Multi-mode Fiber Mode options based on their specific networking requirements. Singlemode fiber is ideal for long-distance, high-speed data transmission, while Multi-mode fiber is suitable for shorter distances within data centers and enterprise networks.
The MPO MTP Fiber Optic Cable is designed for maximum Durability, with a performance rating of ≤ 0.2dB. This ensures reliable and consistent signal transmission over time, reducing the need for frequent maintenance or cable replacements.
For testing and troubleshooting purposes, the cable supports Test Wavelengths of SM: 1310/1550 nm and MM: 850/1300 nm. This allows network technicians to accurately measure signal strength and identify potential issues affecting data transmission.
With a Jacket Od ranging from 3.0mm to 4.5mm, the MPO MTP Fiber Optic Cable provides robust protection for the internal fiber components. The double Jacket design enhances the cable's resistance to external factors such as moisture, dust, and physical stress, ensuring long-term performance and reliability.
Features:
- Product Name: MPO MTP
- Gender: Male(With PIN)/ Female(without PIN)
- Insertion loss Stardand:
- Standard: ≤0.35/0.7 (Typical/Max)
- Low Loss: ≤0.2/0.35 (Typical/Max)
- Interchangeability: ≤ 0.2dB
- Other Fanout Way: Available
- Length: Customized (1/2/3/5/7/10m, etc)
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Breakout Length | 0.5M / 1M / 1.5M / Customized |
| Fiber Diameter | 50/125um, 62.5/125um, 9/125um |
| Length | Customized (1/2/3/5/7/10m, etc) |
| Other Fanout Way | Available |
| Insertion Loss Stardand | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Jacket Od | 3.0mm-4.5mm (double Jacket) |
| Repeatability | ≤ 0.1dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
| Durability | ≤ 0.2dB |
| Cable Material | LSZH / PVC |
Applications:
The MPO MTP Fiber Optic Cable, with the brand name Takfly/DF and model number TK-MPO-PC, is a versatile product that finds its application in various occasions and scenarios. Originating from China and certified with CE, ROHS, ISO14001, ISO9001, CPR, ANATEL, and REACH, this cable is designed to meet international quality standards.
With a minimum order quantity of 1 and packaging details of international export packing, the MPO MTP Fiber Optic Cable ensures safe delivery. The delivery time ranges from 1-3 working days, depending on the quantity ordered. Payment terms include TT 100%, and the supply ability is up to 3000 pcs per day.
The durability of the MPO MTP Fiber Optic Cable is ≤ 0.2dB, guaranteeing long-lasting performance. It is available in both male (with PIN) and female (without PIN) genders, providing flexibility in usage. Additionally, other fanout ways are available, catering to different connectivity needs.
One of the key features of this cable is the breakout length, which can be chosen from options such as 0.5m, 1m, 1.5m, or customized lengths. Moreover, the overall length of the cable is customizable, ranging from 1m to 10m and beyond, making it suitable for various installation requirements.
The MPO MTP Fiber Optic Cable is ideal for applications requiring Multi-Fiber Push-On Connectors. Its design as a trunk cable ensures efficient data transmission in scenarios such as data centers, telecommunications networks, and other high-density environments.
Support and Services:
The MPO MTP product offers comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is available to assist with installation, configuration, troubleshooting, and maintenance of the product. We provide training programs, documentation, and online resources to help customers effectively utilize the MPO MTP product. Additionally, our service offerings include product upgrades, repairs, and replacement parts to extend the lifespan of your investment.
Packing and Shipping:
Product Packaging:
The MPO MTP product is carefully packaged in a sturdy cardboard box to ensure safe transportation. Each individual MPO MTP connector is placed in a protective plastic sleeve to prevent any damage during shipping.
Shipping:
Our shipping process involves using reputable carriers to deliver the MPO MTP product to your location securely and on time. Customers can track their shipments and receive updates on the delivery status for peace of mind.
