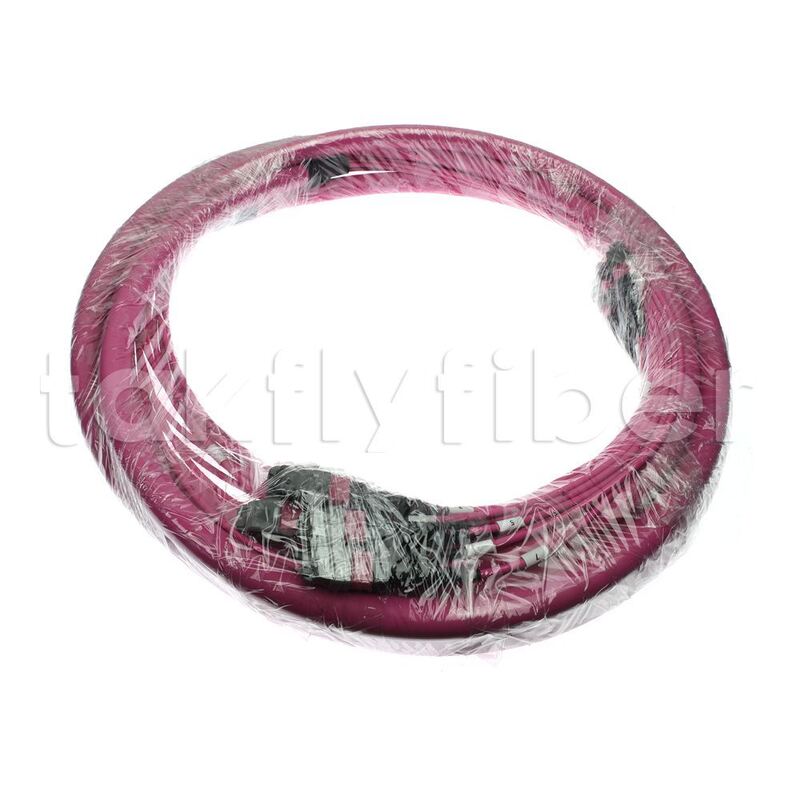

144 Cores OM4 Low Loss MPO Fiber Cable with MTP Connectors for High-Density Data Centers
পণ্যের বিবরণ:
| Place of Origin: | Shenzhen, China |
| পরিচিতিমুলক নাম: | Neutral/OEM/Takfly |
| সাক্ষ্যদান: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MTP-12F-OM4-OFNP-005 |
প্রদান:
| Minimum Order Quantity: | 1 |
|---|---|
| মূল্য: | US$0.01~US$399.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union,L/C,T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
বিস্তারিত তথ্য |
|||
| কোর: | 144F, 12x12F | ফাইবার টাইপ: | MM OM4 |
|---|---|---|---|
| দৈর্ঘ্য: | 5M/15M বা কাস্টমাইজড | তারের ব্যাস: | 3.0 মিমি |
| সংযোগকারী প্রকার: | এমপিও/এমটিপি | সন্নিবেশ ক্ষতি: | কম ক্ষতি: 0.35dB |
| রিটার্ন লস: | MM ≥20dB | তারের জ্যাকেট: | LSZH |
| তারের রঙ: | ম্যাজেন্টা, ভায়োলেট | আবেদন: | ডেটা সেন্টার, টেলিকম, নেটওয়ার্ক |
| সাক্ষ্যদান: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | পণ্যের নাম: | 12F ফাইবার অপটিক হারনেস MPO-LC Uniboot MPO ব্রেকআউট প্যাচ ক্যাবল, প্লেনাম (OFNP), 0.35dB ম্যাক্স। |
| বিশেষভাবে তুলে ধরা: | 144 Cores MPO Fiber Cable,OM4 MTP Fiber Cable,Low Loss MPO Trunk Cable |
||
পণ্যের বর্ণনা
CPR B2ca 144 Cores MPO Fiber Cable, 12x MTP, OM4, Male, Type B, Low Loss, 5m
Takfly's MPO trunk cables are available with 12, 24, 48, 72, and up to 144 fibers. These cables feature MPO connectors that can be either male (with pins) or female (without pins), with three different connection methods: Type A (straight through), Type B (reversed connection), and Type C (pairs flipped). Custom configurations are available for fiber mode, fiber count, and cable specifications.
MPO trunk cables establish high-density connections with MPO connectors on each end, delivering optimal performance in demanding environments. Their low insertion loss and high return loss ensure consistent signal quality, while the push/pull mechanism facilitates easy insertion and removal. MPO stands for Multifiber Termination Push On.
Takfly offers extensive customization options for MPO Trunk Cables to meet your specific application requirements. Contact our Solutions Specialists for more information.
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm；Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Key Features
- Factory-terminated for consistent quality, high performance, and reduced installation time
- 100% tested for low insertion loss performance and high back reflection
- Fiber Count: 12 fiber trunk cable
- Laser-Optimized multimode OM4 fiber
- Type B polarity, compatible with 40G QSFP eSR4 and 100G QSFP28 SR4 optics
- Optimized performance - available in elite MTP and discrete premium connector options
- Complies with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS standards
- LSZH Jacket by Default
Performance Benefits
- Supports next-generation network speeds and future-proofing
- Assemblies compatible with multiple active equipment upgrades
- Modular connectivity supports 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time
- Configurable length assemblies reduce slack management and patch field congestion
- Improved air-flow management
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Polarity Configuration
MTP MPO Patch Cable Production Process
Why Choose Takfly
Professional Manufacturing Expertise
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 26+ R&D Engineers
- 16 Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation
- 24/7 after-sales service
Quality Control Process
- Raw material incoming inspection before production
- Full inspection after every individual process
- Half-done production inspection
- Finished products inspection before packing
- Pre-shipping spot checks
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging options: Plastic Bag, Carton, and Pallet
- Shipping methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days)
- Sea or Air freight available with preferred forwarders
Payment & Pricing
- Payment Terms: T/T, Paypal, Western Union, L/C
- Competitive pricing with quantity-based negotiation
With over 10 years of industry experience, we provide exceptional service and professional technical support. Contact us today for product inquiries or technical consultation.
