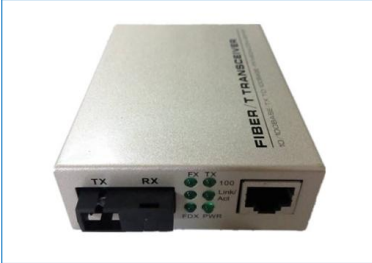

SC Simplex Fiber 10/100Base-TX to 100Base-FX with LFP Fiber Optic Media Converter
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | LFP ফাইবার অপটিক মিডিয়া কনভার্টার সহ SC সিমপ্লেক্স ফাইবার 10/100Base-TX থেকে 100Base-FX |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 2000 নং/সপ্তাহ |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | LFP ফাইবার অপটিক মিডিয়া কনভার্টার সহ SC সিমপ্লেক্স ফাইবার 10/100Base-TX থেকে 100Base-FX | স্ট্যান্ডার্ড: | IEEE802.3 10Base-T ইথারনেট, IEEE802.3u 100Base-TX/FX ফাস্ট ইথারনেট |
|---|---|---|---|
| ডেটা রেট: | তামা: 10/100/1000M; ফাইবার: 10/100/1000Mbps | তামা বন্দর: | সংযোগকারী: RJ45 সংযোগকারী দূরত্ব: 100m |
| শক্তি খরচ: | <2W | 1 কাজের ক্ষমতা:: | DC5V 1A |
| কেস রঙ: | কালো | অপারেটিং টেম্প: | অপারেটিং টেম্প: 0~50°C |
| তাপমাত্রা বজায় রাখা: | সঞ্চয়স্থান তাপমাত্রা:-40~85°C | আর্দ্রতা: | আর্দ্রতা: 5% ~ 95% |
| স্থূল ওজন: | বাহ্যিক: 0.4 কেজি | মাত্রা (W*D*H): | বাহ্যিক: 94mmx70mmx26mm অভ্যন্তরীণ: 140mmx110mmx30mm |
| বিশেষভাবে তুলে ধরা: | SC simplex fiber media converter,10/100Base-TX to 100Base-FX converter,fiber optic media converter with LFP |
||
পণ্যের বর্ণনা
SC Simplex Fiber 10/100Base-TX to 100Base-FX Media Converter with LFP
The DF-MC12 Serial Fiber Media Converter translates signals from twisted-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extending data transmission distance from 100 meters via copper cables to 120 kilometers using fiber optic technology. This converter supports LFP (Link Fault Pass-through) functionality for enhanced network reliability.
Key Features
- 10/100 Mbps auto-sensing for easy network upgrades
- Full-duplex and half-duplex auto-sensing capability
- MDI/MDI-X Auto Negotiation
- 10/100 Mbps store-and-forward operation
- 1000Mbps cut-through transmission
- Packet size support up to 1518 bytes
- VLAN, VoIP, and QoS packet compatibility
- Flow control with reduced broadcast packets
- STP support for redundant network formation
- Low power consumption with stable thermal performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- LFP (Link Fault Pass-through) Function
- External Power Adapter or USB power source options
- DIP Switch for configuration settings
- Extra-long packet support up to 1600 bytes
Technical Specifications
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow Control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | No. of Copper Ports: 1 Connector: RJ45 Distance: 100m |
| Fiber Port | No. of Fiber Ports: 1 Connector: SFP as default, FC/ST/SC optional Wavelength: TX 1550 nm/RX 1310 nm Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED Indicators | PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action), 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber) |
| Power Supply | Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional |
| Power Consumption | <2W |
| Environment | Operating temperature: -10~55ºC Storage Temperature: -40~85ºC Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 94mmx70mmx26mm Internal: 140mmx110mmx30mm |
| Gross Weight | External: 0.4kg Internal: 0.5kg |
Why Choose TAKFLY
- 26+ years of fiber optic product manufacturing experience
- 450+ assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers for continuous innovation
- 16 Germany-imported injection machines and production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
Q6: What are your packing terms?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: What is your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
