FTTH High-Density MTP/MPO to LC Fiber Cassette Management Fiber Patch Panel For Data Center
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন, শেনজেন |
| পরিচিতিমুলক নাম: | DF/OEM/Nuetral |
| সাক্ষ্যদান: | CE/ROHS/REACH/ISO9001/ISO14001 |
| মডেল নম্বার: | এমটিপি/এমপিও থেকে এলসি ফাইবার ক্যাসেট প্যানেল |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | আলোচনা সাপেক্ষ |
|---|---|
| মূল্য: | negotiable denpend on QTY |
| প্যাকেজিং বিবরণ: | ফোস্কা বাক্স + শক্ত কাগজ |
| ডেলিভারি সময়: | 5-9 কার্যদিবস QTY এর উপর নির্ভর করে |
| পরিশোধের শর্ত: | ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম/পেপাল |
| যোগানের ক্ষমতা: | 1000 পিসি/দিন |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | FTTH হাই-ডেনসিটি MTP/MPO থেকে LC ফাইবার ক্যাসেট ম্যানেজমেন্ট ফাইবার প্যাচ প্যানেল ডেটা সেন্টারের জন্ | ফাইবার টাইপ: | SM (G652, G655, G657); MM (OM1-OM5) |
|---|---|---|---|
| বন্দর সংখ্যা: | 4 | প্রস্থ: | 482 মিমি |
| গভীরতা: | 380 মিমি | প্যাকেজিং ওজন: | 3.3 কেজি |
| উপাদান: | 1.২ মিমি. ঠান্ডায় ঘূর্ণিত ইস্পাত | রঙ: | কালো |
| এর সাথে সঙ্গতিপূর্ণ ডিজাইন করা হয়েছে: | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 | অনুগত: | RoHS, রিচ/এসভিএইচসি |
| বিশেষভাবে তুলে ধরা: | FTTH MTP LC fiber cassette,high-density MPO fiber patch panel,data center fiber management panel |
||
পণ্যের বর্ণনা

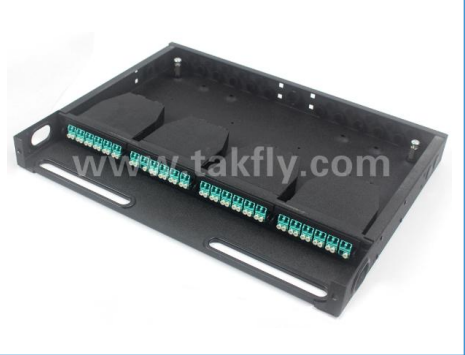

FTTH High-Density MTP/MPO to LC Fiber Cassette Management Fiber Patch Panel For Data Center
Takfly series rack-mounted patch panel is designed to manage and house easy-plug MTP/MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP/MPO fiber cabling system.
This solution contributes to greater network availability that is especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP/MPO to LC cassette is accommodated with a 12/24-fiber MTP/MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Applications
- Optical fiber communication dense wiring system between buildings
- WAA
- LAN
- CATV
- Telecommunication base station
- Optical link interconnection in optical active equipment for LAN cabling
- FTTH
- Data Center
Features
- Up to 4 Small/MTP modules in 1U
- Multiple adaptor options available
- Accepts loose tube, distribution and pre-terminated cables
- ROHS, REACH SvHC and UL rated
- Fits standard 19" racks
Specifications
| U Size | 1U (44.2mm) |
|---|---|
| Number of Ports | 4 |
| Width | 482mm |
| Depth | 380mm |
| Net Weight | 3kg |
| Packaged Weight | 3.3kg |
| Material | 1.2mm Cold-rolled steel |
| Material Coating | Powder coating |
| Color | Black |
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
| Compliant to | RoHS, Reach/SVHC |
Why Choose TAKFLY?
- More than 26+ years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- Comprehensive testing equipment: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, and more
- OEM branding accepted
- Regular exhibition participation worldwide
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
